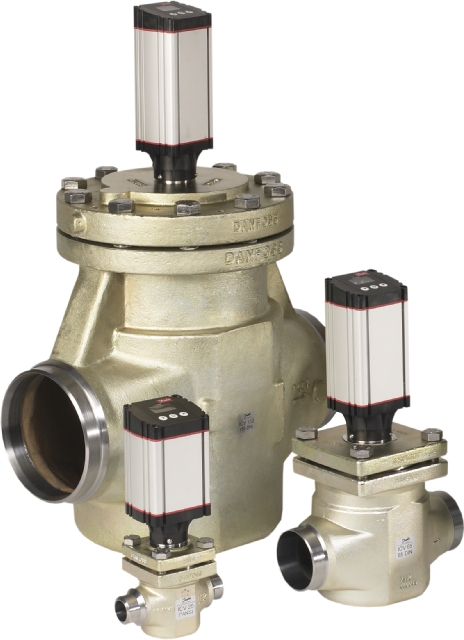

ICM is a very compact, direct operated motor valve.
AN ICM motor valve comprises three main components: a valve body, a combined function module/top cover and an ICAD actuator.
The ICM motor valve is available as a complete valve and as parts programme.
The ICM valve is designed to regulate an expansion process in liquid lines and to control pressure or temperature in dry and wet suction lines and hot gas lines. ICM valves can be operated manually via a magnetic tool (accessory).

Designed for Industrial Refrigeration applications for a maximum working pressure of 52 bar / 754 psig.
· Applicable to all common refrigerants including R717 and R744 (CO2) and non corrosive gases/liquids.
·Direct coupled connections.
· Connection types include butt weld, socket weld, solder and threaded connections.
·Low temperature steel body.
Low weight and compact design.
V-port regulating cone ensures optimum regulating accuracy particularly at part load.
Cavitation resistant valve seat.
Modular Concept
– Each valve body is available with several different connection types and sizes.
– Valve overhaul is performed by replacing the function module.
– Possible to convert ICM motor valve to ICS servo valve.
Manual opening possible via ICAD or MMT.
·Teflon seat provides excellent valve tightness.
