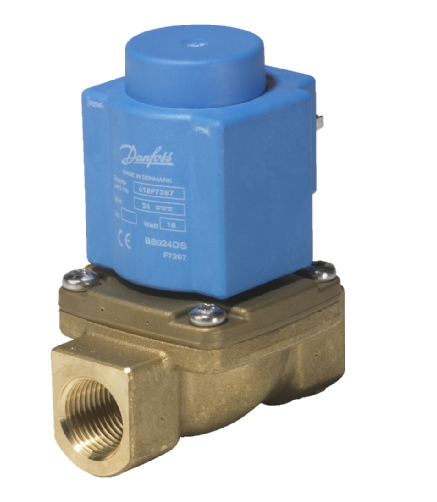

EV225B is a servo-operated 2/2-way solenoid valve for use in steam application.
The design is based on a PTFE diaphragm concept, ensuring high reliable function even in connection with contaminated steam.
Valve body in dezincification resistant brass and valve seats made in stainless steel for ensuring a long life even in connection with aggressive steam media.
Coil types BB, BQ and BN can be used on EV225B, giving a wide flexible range of products offering temperatures 140°C, 160°C and 185°C.

• 2/2-way
• Specifically designed for steam applications
• Servo-operated
• DN 6 - DN 25
• Ambient temperature: +40°C
• G 1/4" to G 1"
• DZR brass valve body, stainless steel orifice
• NC (normally closed)
• UL listed version available with NPT for North America (EVSIS)
• Integrated aflas o-ring
• IP 65
