EV220A, Servo-operated 2/2-way solenoid valves ,

Characteristic	Value
Type	EV220A
Weight	0.960 Kg
Actuator size	9 mm
Actuator size [in]	0.35 in
Ambient temperature max. [°C]	50 °C
Ambient temperature max. [°F]	122 °F
Body material	Brass
Connection	G 1
Connection Internal/External	Internal
Connection standard	ISO 228-1
Cv value [gal/min]	8,200 gpm US
Differential pressure [bar]	0,3 - 16 bar
Differential pressure [psi]	4,3 - 228,6 psi
EAN	5702423106660
Function	N C
Kv value [m³/h]	7,000 m3/h
Max. Working Pressure [bar]	50,0 bar
Max. Working Pressure [psig]	715 psig
Medium temperature range [°C]	-10 - 90 °C
Medium temperature range [°F]	15 - 195 °F
Number of ways	2/2
Operation	Servo-operated (diaphragm)
Orifice size [in]	7/8 in
Orifice size [mm]	22,00 mm
Packing format	Multi pack
Quantity per packing format	12 PC
Seal material	NBR
Type designation	Solenoid valve

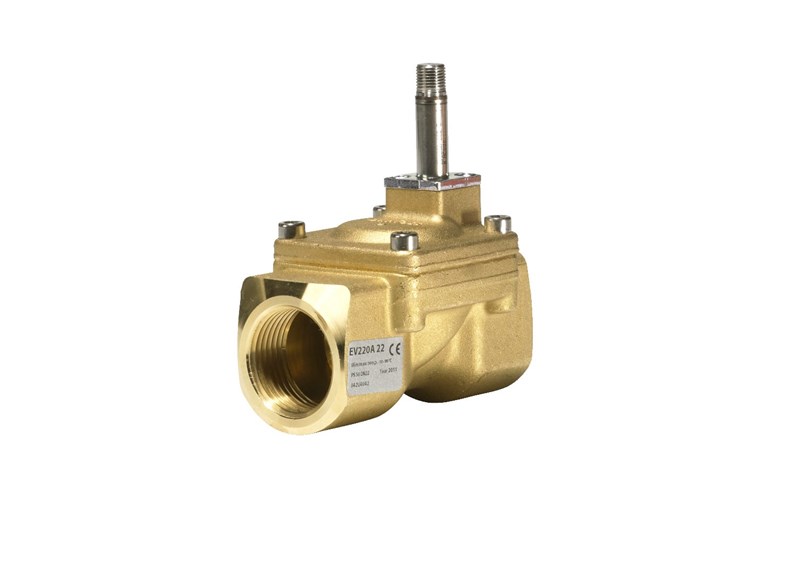

รูปภาพสินค้าEV220A, Servo-operated 2/2-way solenoid valvesรูปที่#1

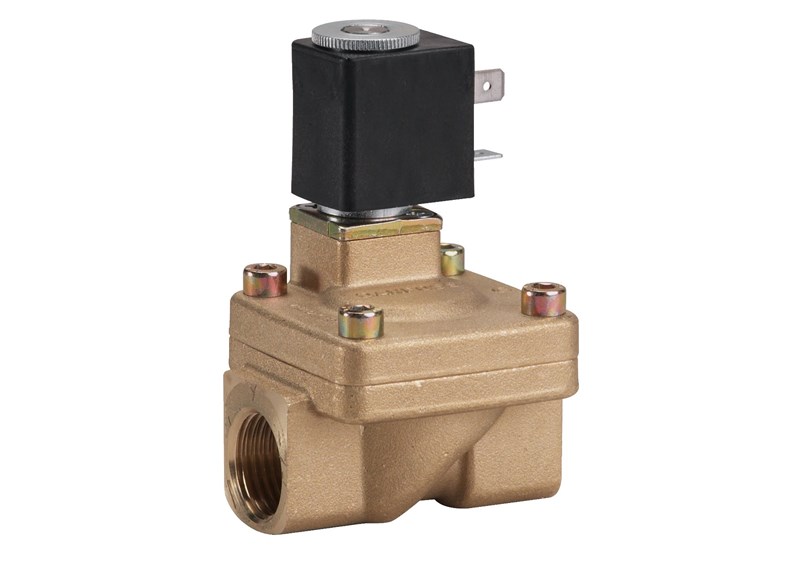

รูปภาพสินค้าEV220A, Servo-operated 2/2-way solenoid valvesรูปที่#2
